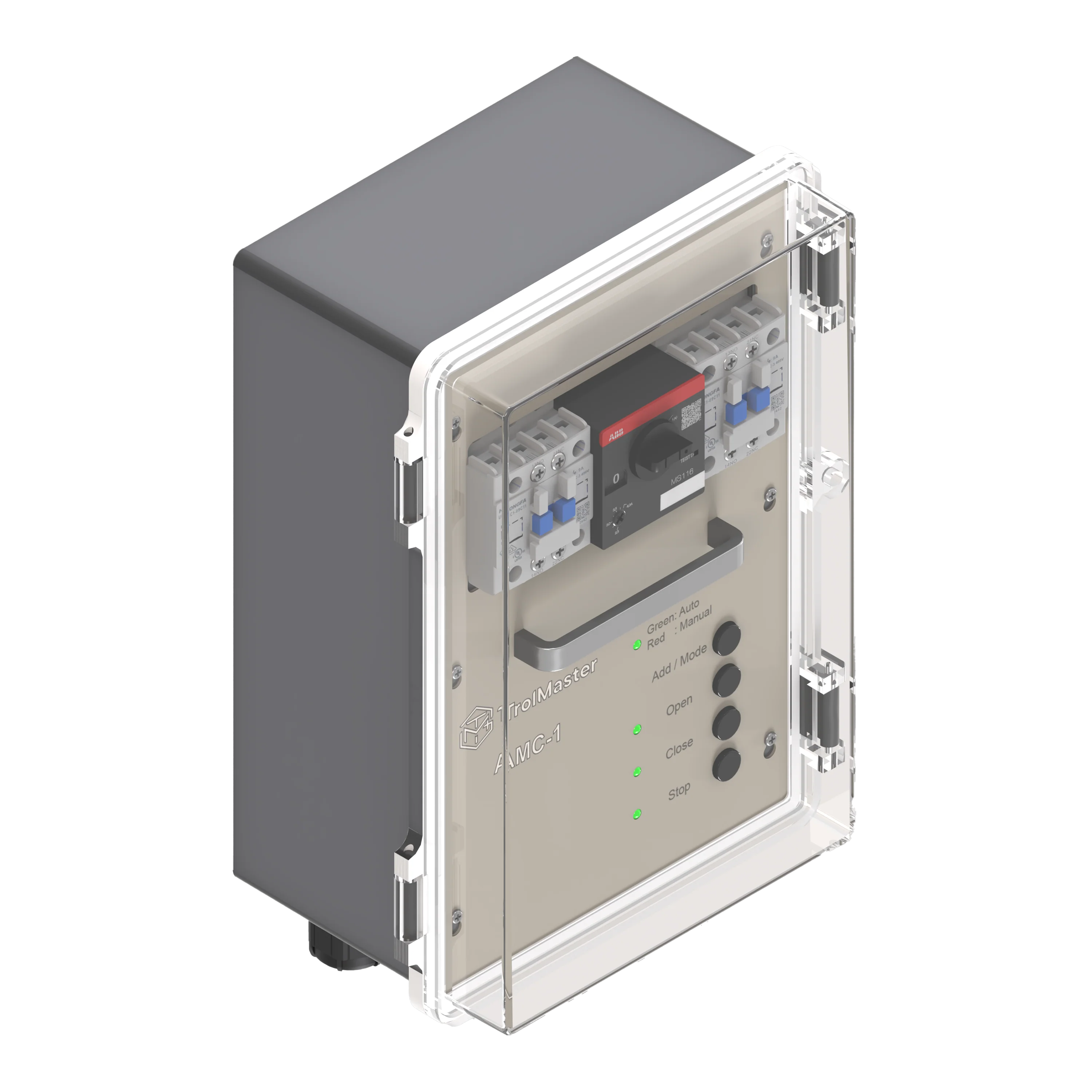

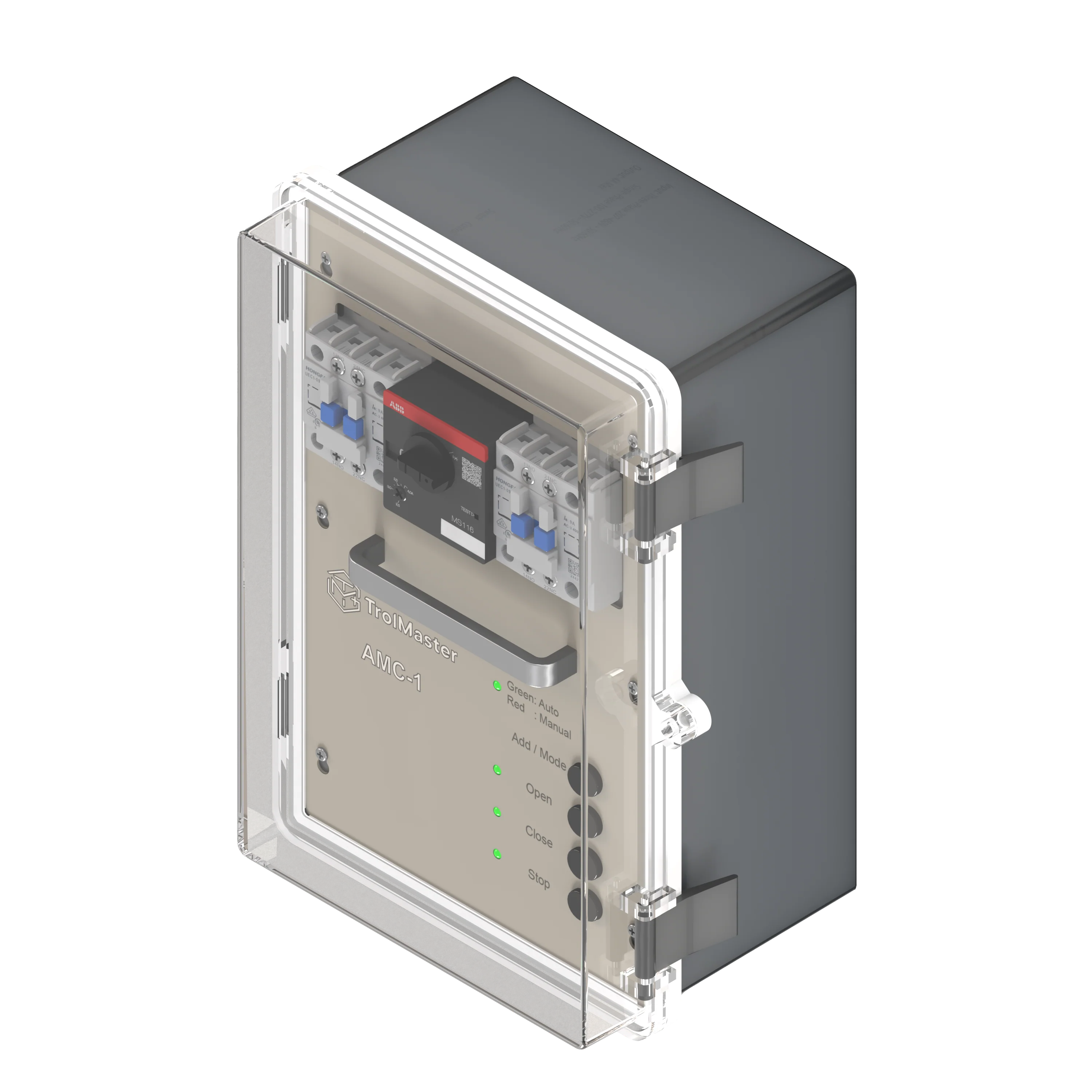

The AMC-1 is an advanced agricultural greenhouse curtain motor driver that facilitates both manual and automated control of curtain motors. Designed for seamless integration with the GCS-1 (Green-X Greenhouse System), the AMC-1 allows for precise motor control, including forward and reverse operation, stopping functions, timeout shutoff, and overcurrent protection. This integration enhances greenhouse management by enabling centralized monitoring and control, which optimizes environmental conditions for plant growth and improves operational efficiency.

What's Included

• 1x Single/Three Phase Curtain Motor Controller (100-277V)
• 1x 12ft RJ12 to 4-pin IP65 Connector Cable

---

Features & Benefits

• Single/Three Phase power compatible
• 100-277V power compatible
• Plug & Play
• Forward and reverse operation
• Motor protection

---

Specifications

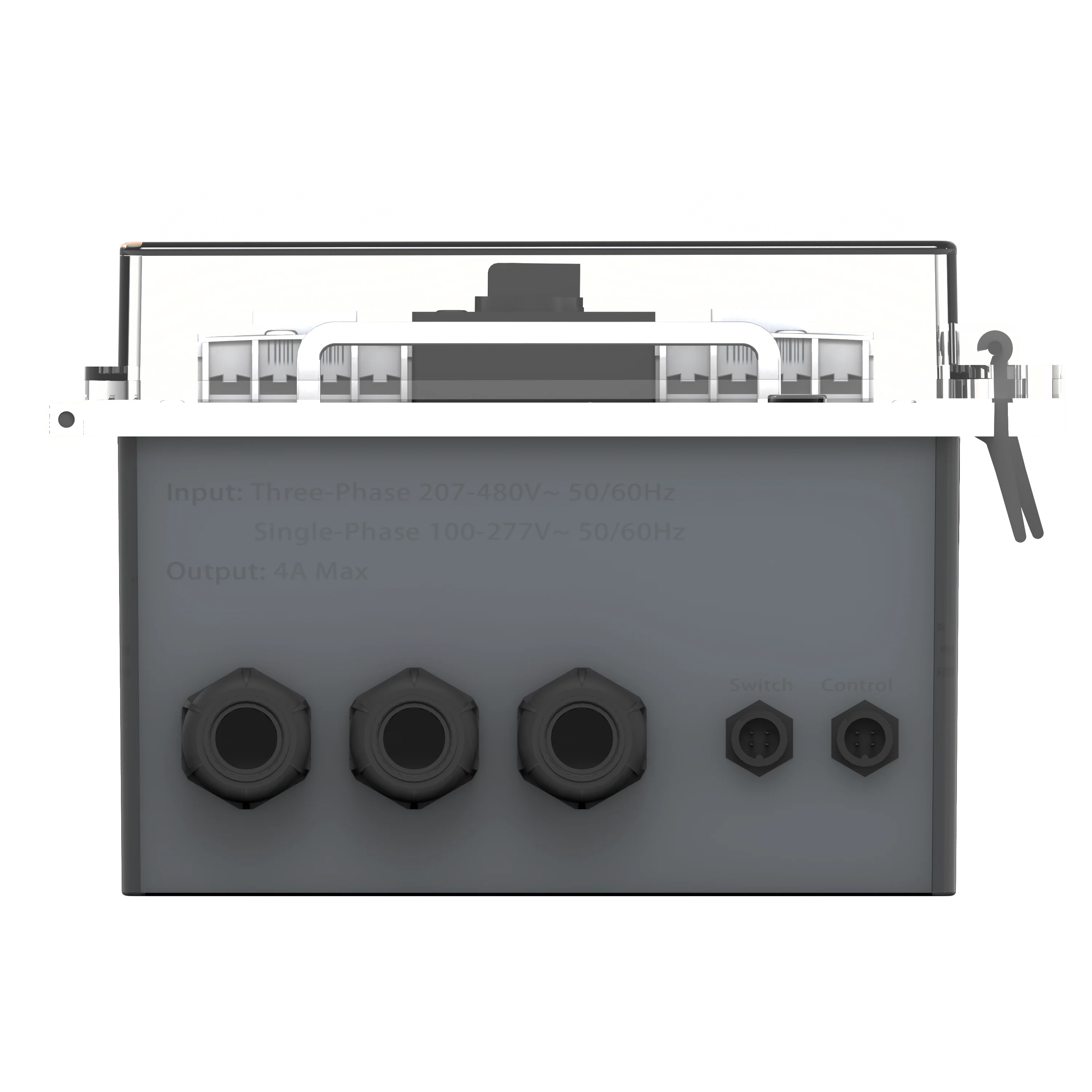

• Input Voltage: [Single-Phase] 100-277V, 50/60Hz [Three-Phase] 207-480V, 50/60Hz
• Maximum Output Current: 4A
• Communication Method: RS-485 (4-pin waterproof connector)
• Waterproof Rating: IP54
• Ambient Temperature: 32-104°F (0-40°C)
• Relative Humidity: ≤90%
