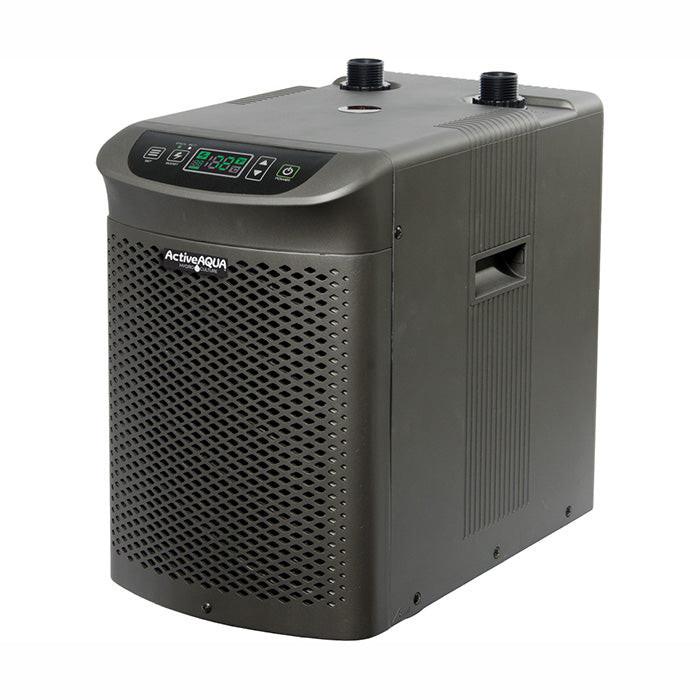

Active Aqua Water Chillers

Active Aqua Chillers are the Freon-free, environmentally safe way to keep hydroponic solutions at the perfect temperature in your reservoirs. With microcomputer control systems and LCD displays, as well as temperature memory systems included in each unit, these chillers offer maximum utility and durability.

Active Aqua chillers are environmentally friendly (they use R134a refrigerant) and are ideal for keeping the nutrient solution in your reservoir at the perfect temperature. Each unit has a user-friendly temperature system that allows you to control your desired temperature range as needed, and all models now have a boost function that accelerates the chilling process for quicker establishment of desired nutrient solution temperature.

Features:

Large refrigeration capacity
Anti-corrosive pure titanium evaporator for both fresh and salt water
Fittings Included
Convenient microcomputer control system
Compressor protection function shuts off the circuit automatically to prevent the motor from burning out when it is overheated
Memory backup feature allows the unit to return to the previous setting after the unit experiences an unexpected power outage
Boost function accelerates the chilling process with two available options: 2-hour setting chilling and continuous (24 hrs/day, 7 days/week) setting for maximum chilling
The available range for user-set temperature is 39°F to 90°F (3°C to 32°C).

Please note that the starting ambient temperature of your solution will always affect the duration of the initial chilling process.

Recommended Water Pumps

1/10 HP

1/4 HP

1/2 HP

1 HP

Active Aqua Utility Sump Pump 1479 GPH
Active Aqua Utility Sump Pump 2166 GPH
Active Aqua Utility Submersible Pump 5284 GPH

Specifications

HP	1/10 HP	1/4 HP	1/2 HP	1 HP
Cooling Units	1,020 BTU	3,010 BTU	4,020 BTU	10,050 BTU
Rate of flow	132-396 GPH	396-925 GPH	800-1600 GPH	1320-3900 GPH
Recommend Volume (Refrigeration Capacity)	10‒40 gal	40-92 gal	90 - 172 gal	80-250 gal
Power Requirements	190W / 120V / 2.2A	460W / 120V / 4.7A	510W / 120V / 5.4A	1100W / 120V / 10.2A
Fittings Included	1/2" & 3/4"	1/2" & 3/4"	1/2", 3/4", and 1"	1" - 1 1/4"
Dimensions	17"L x 10"W x 15"H	18"L x 13"W x 17"H	19"L x 14"W x 19"H	21"L x 15"W x 20"H
Weight	33 lbs.	41 lbs.	48.5 lbs.	69 lbs.

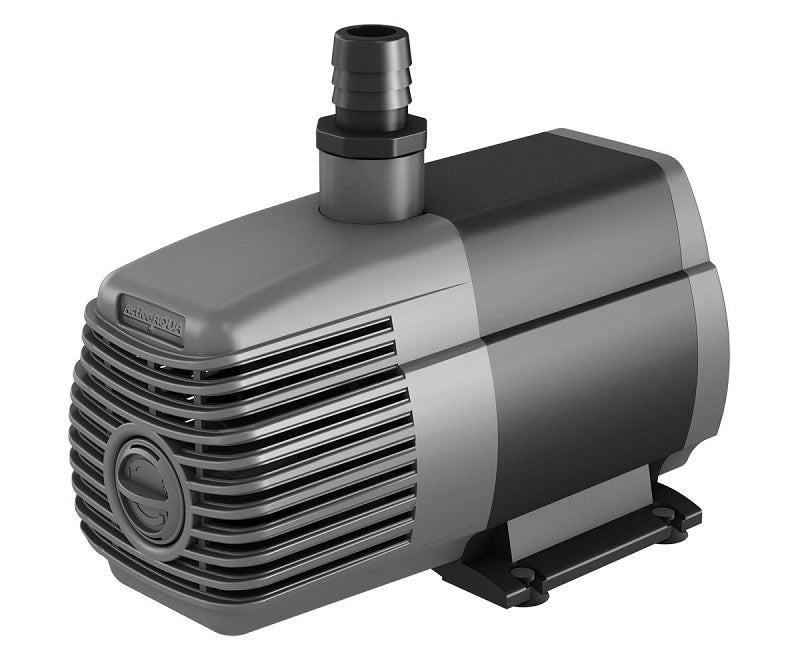

Active Aqua Submersible/Inline Water Pumps

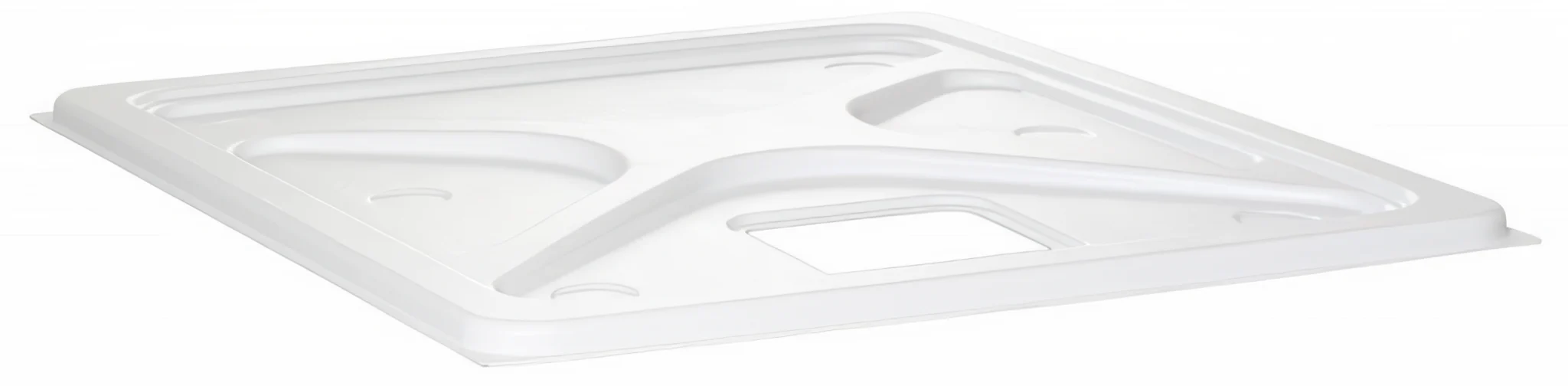

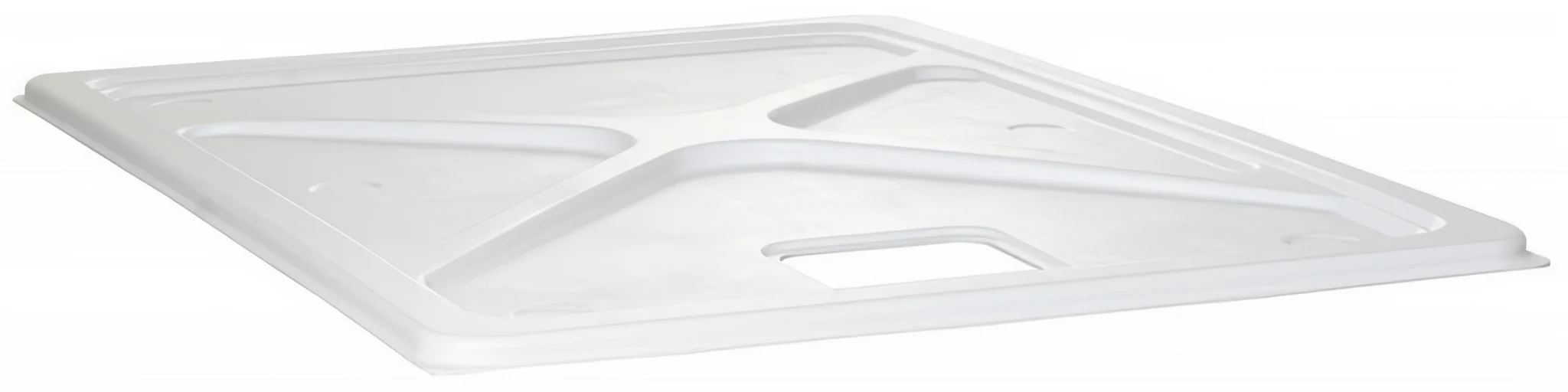

Active Aqua Premium Reservoir Covers - White

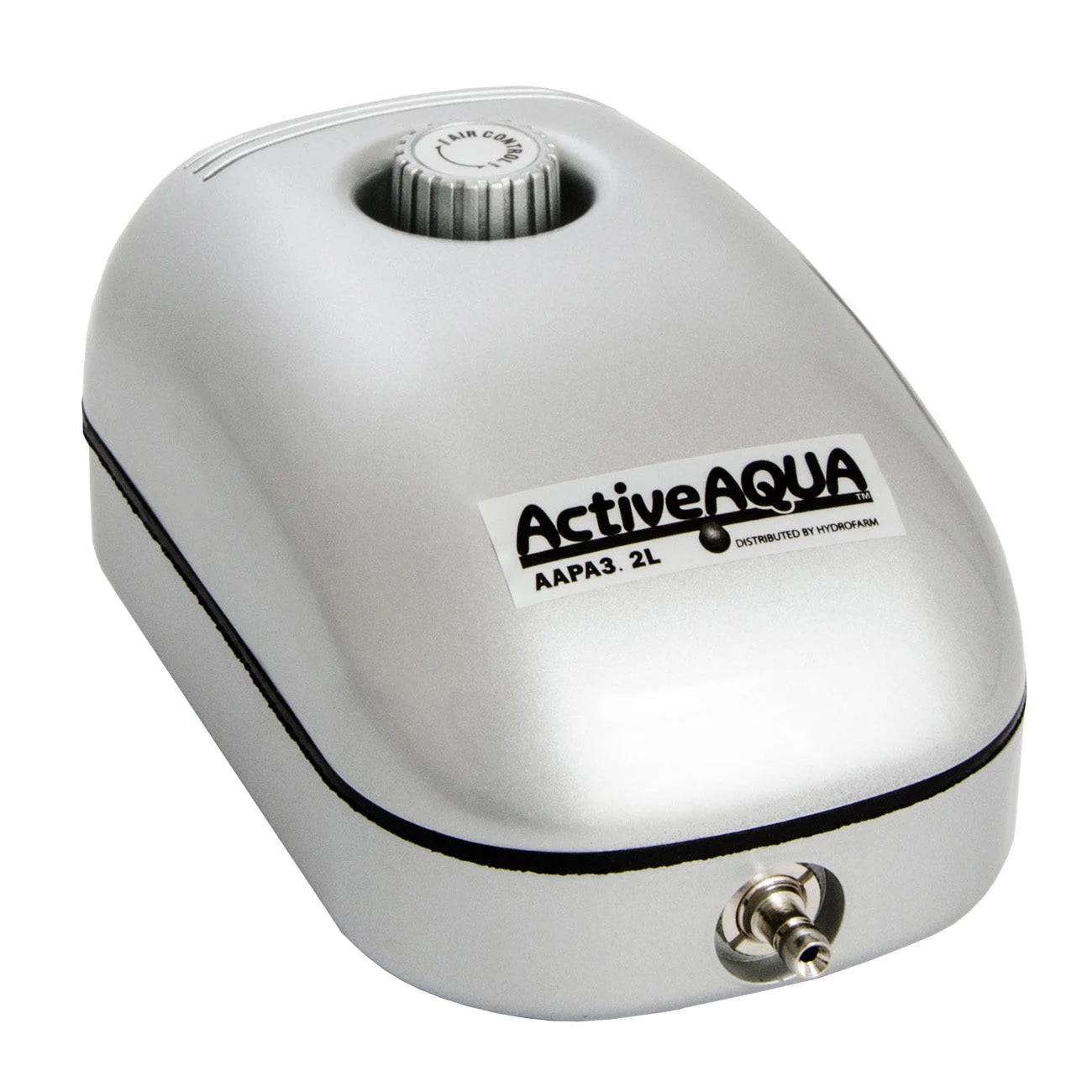

Active Aqua Air Pumps

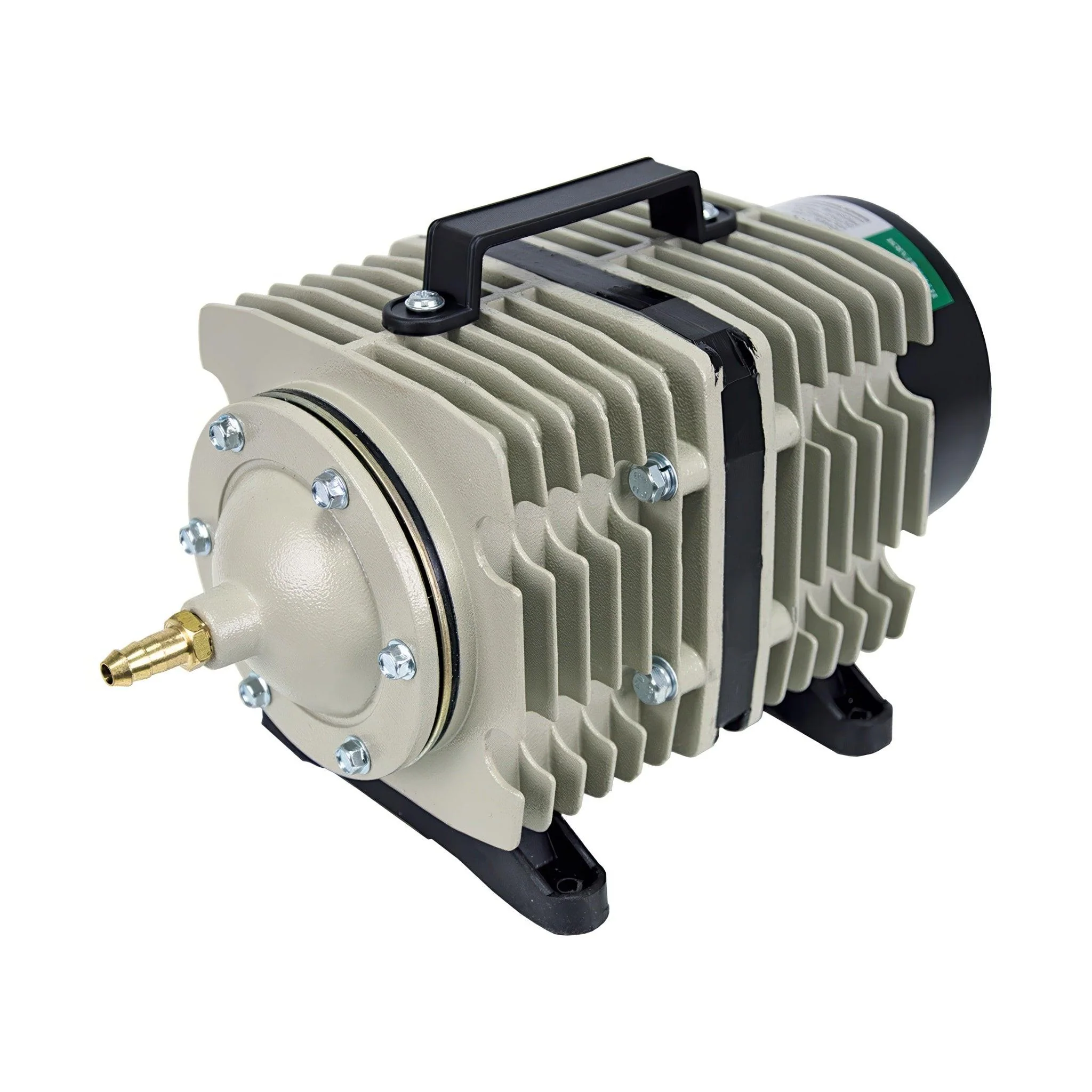

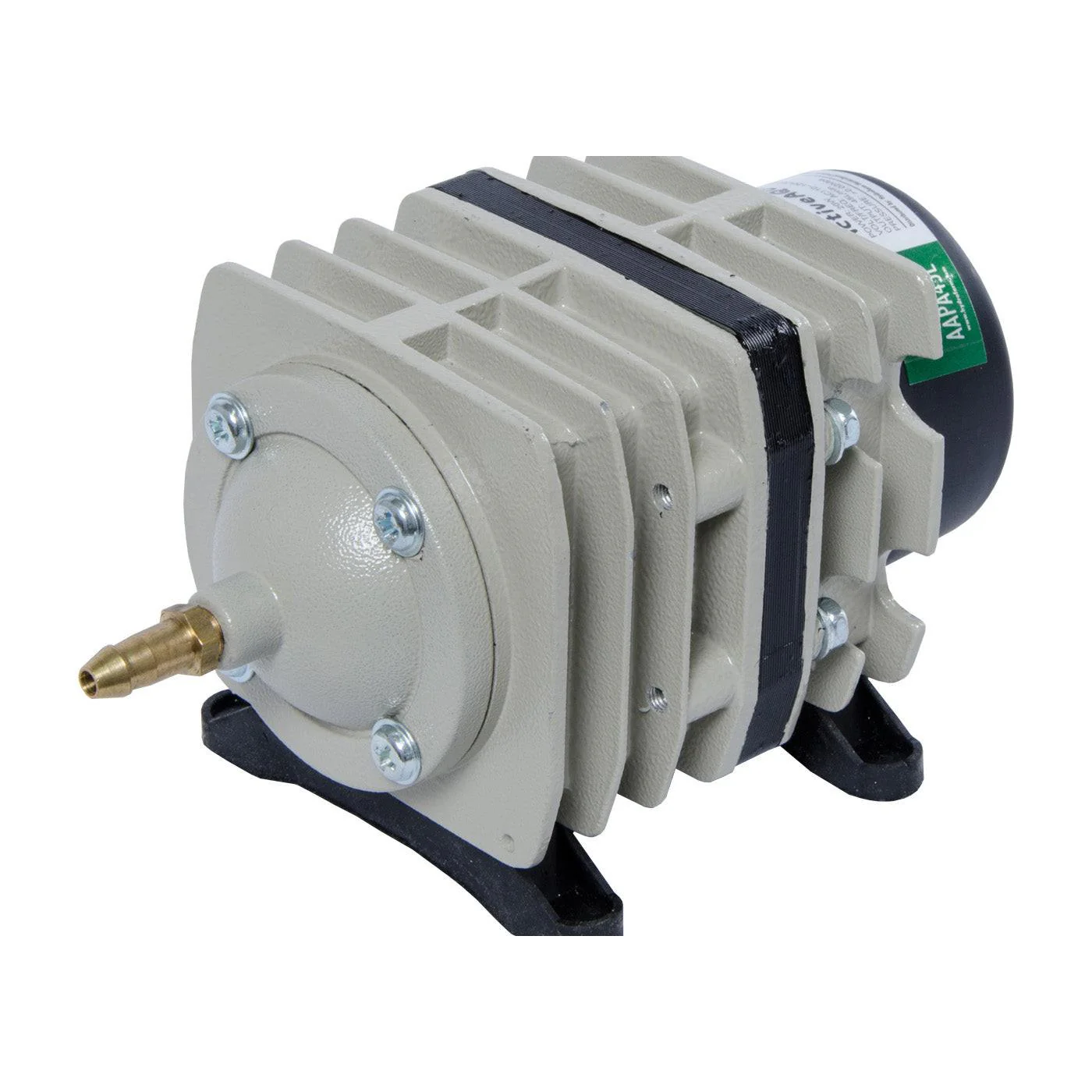

Active Aqua Commercial Air Pumps

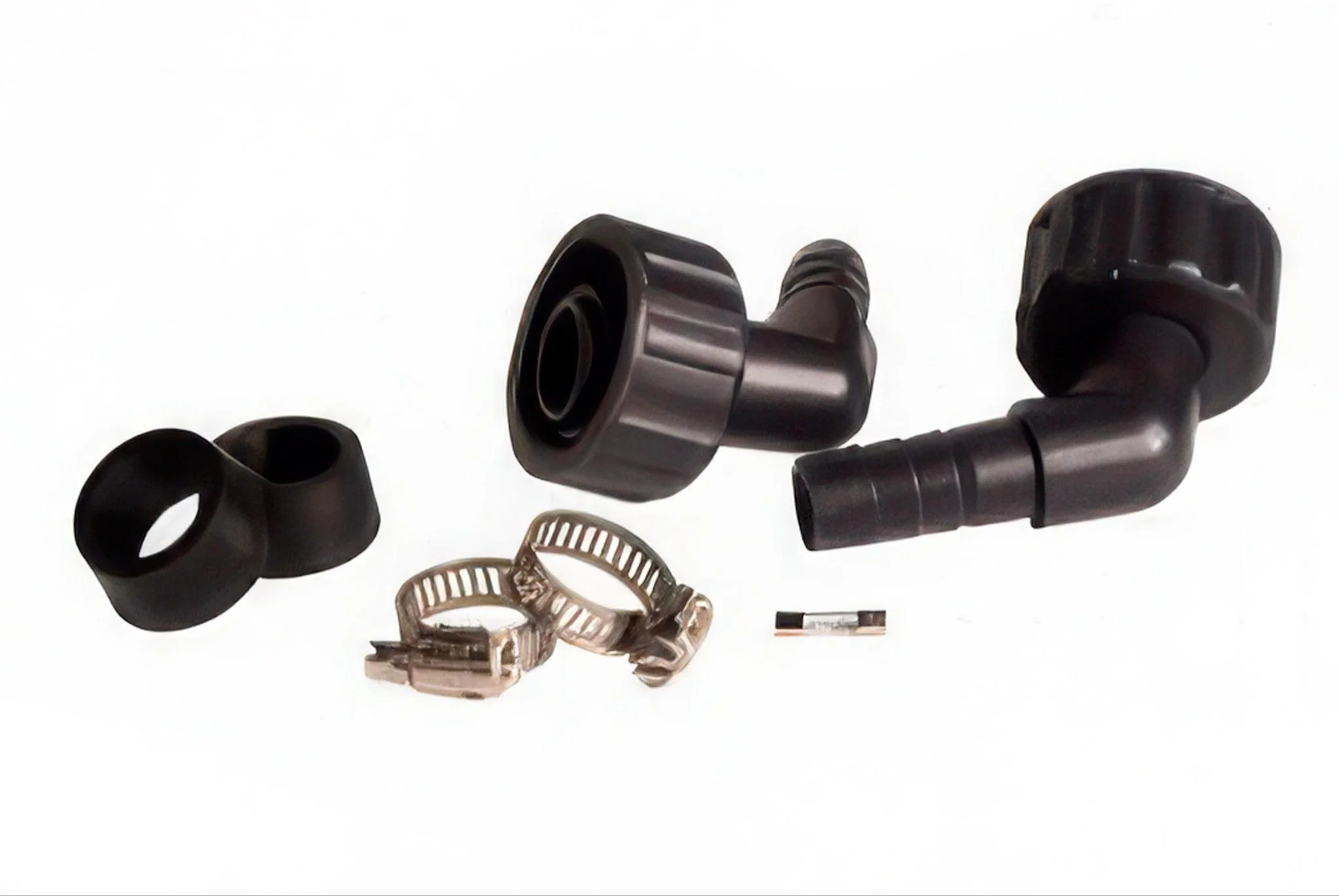

Active Aqua Chiller Fitting Kit

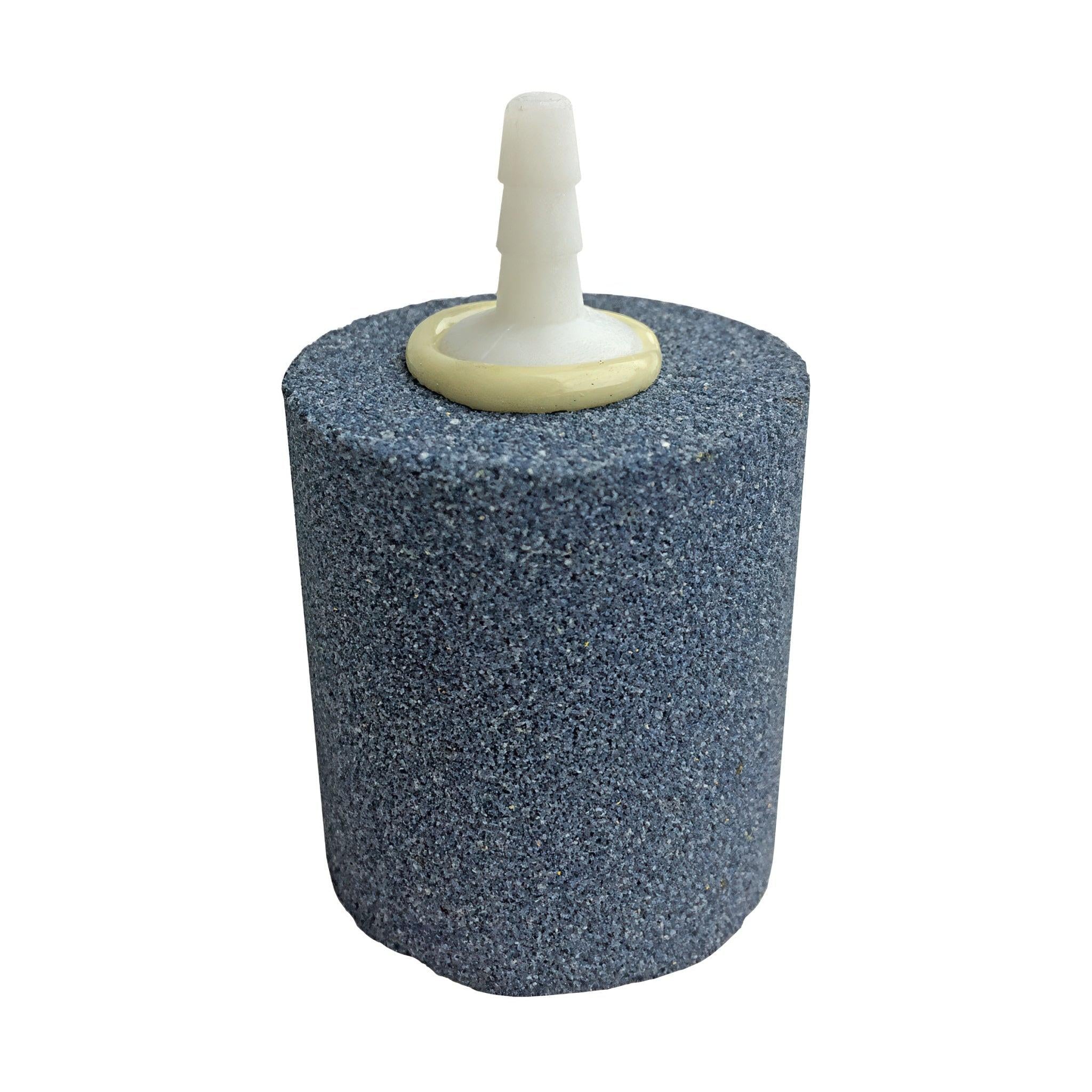

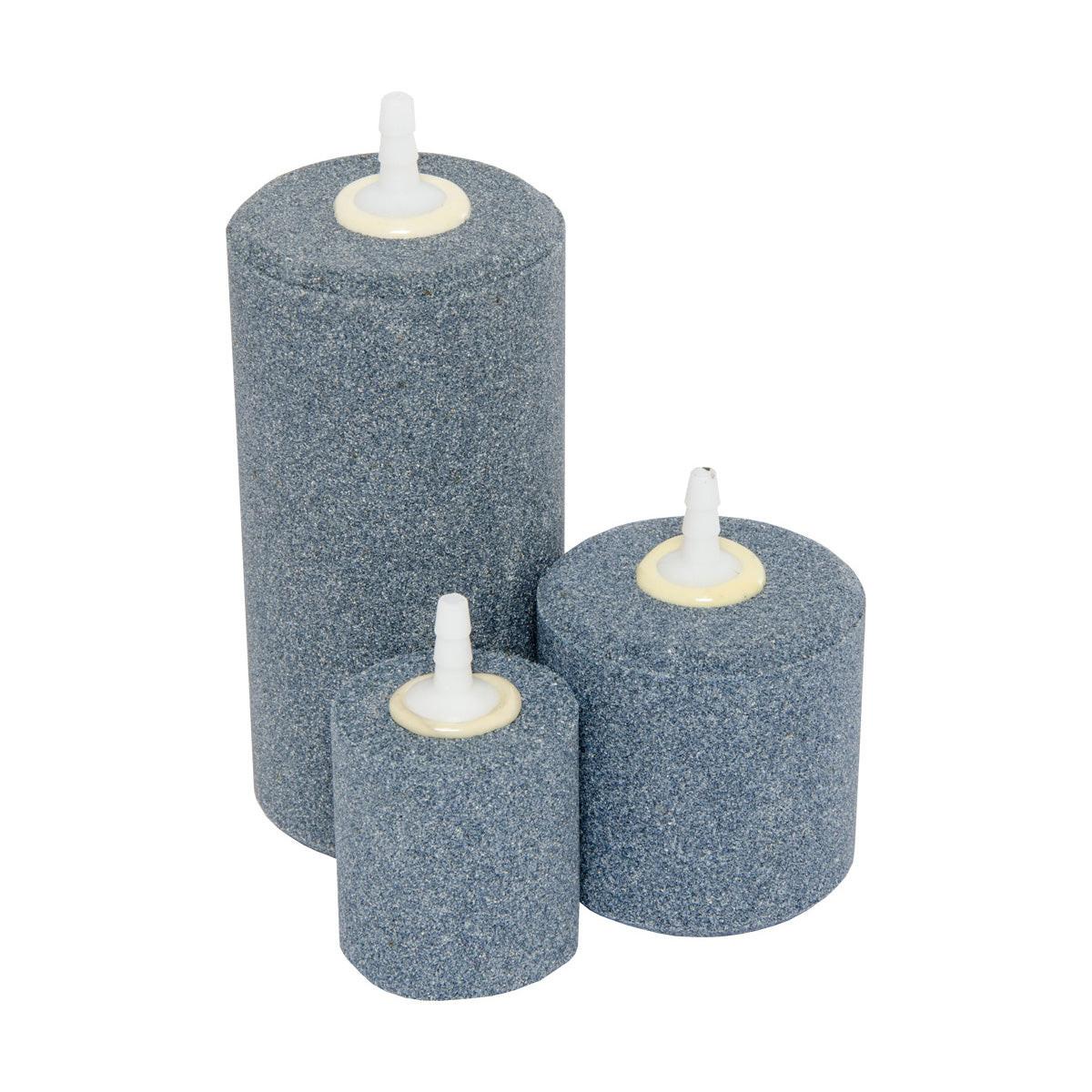

Active Aqua Air Stone, Cylinder

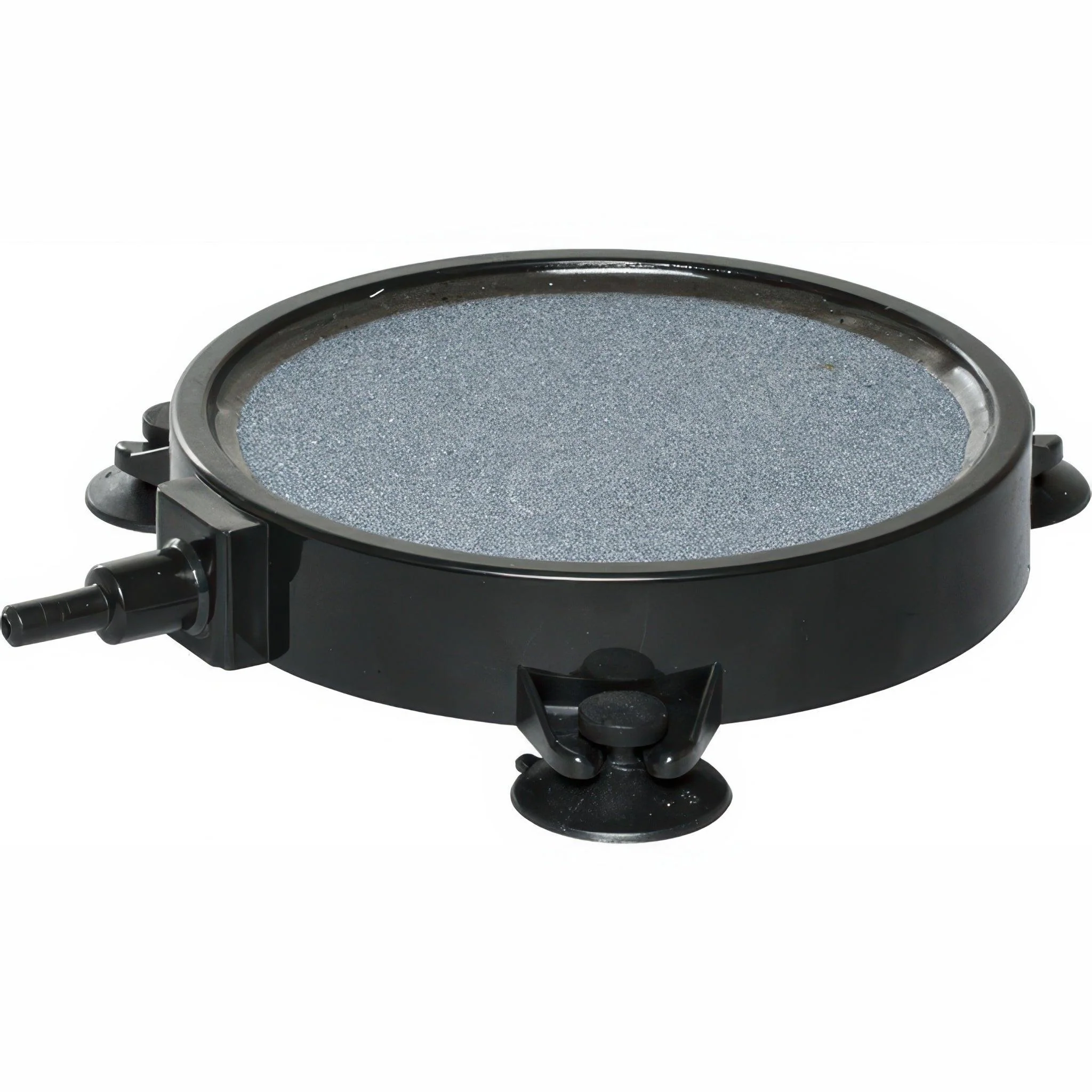

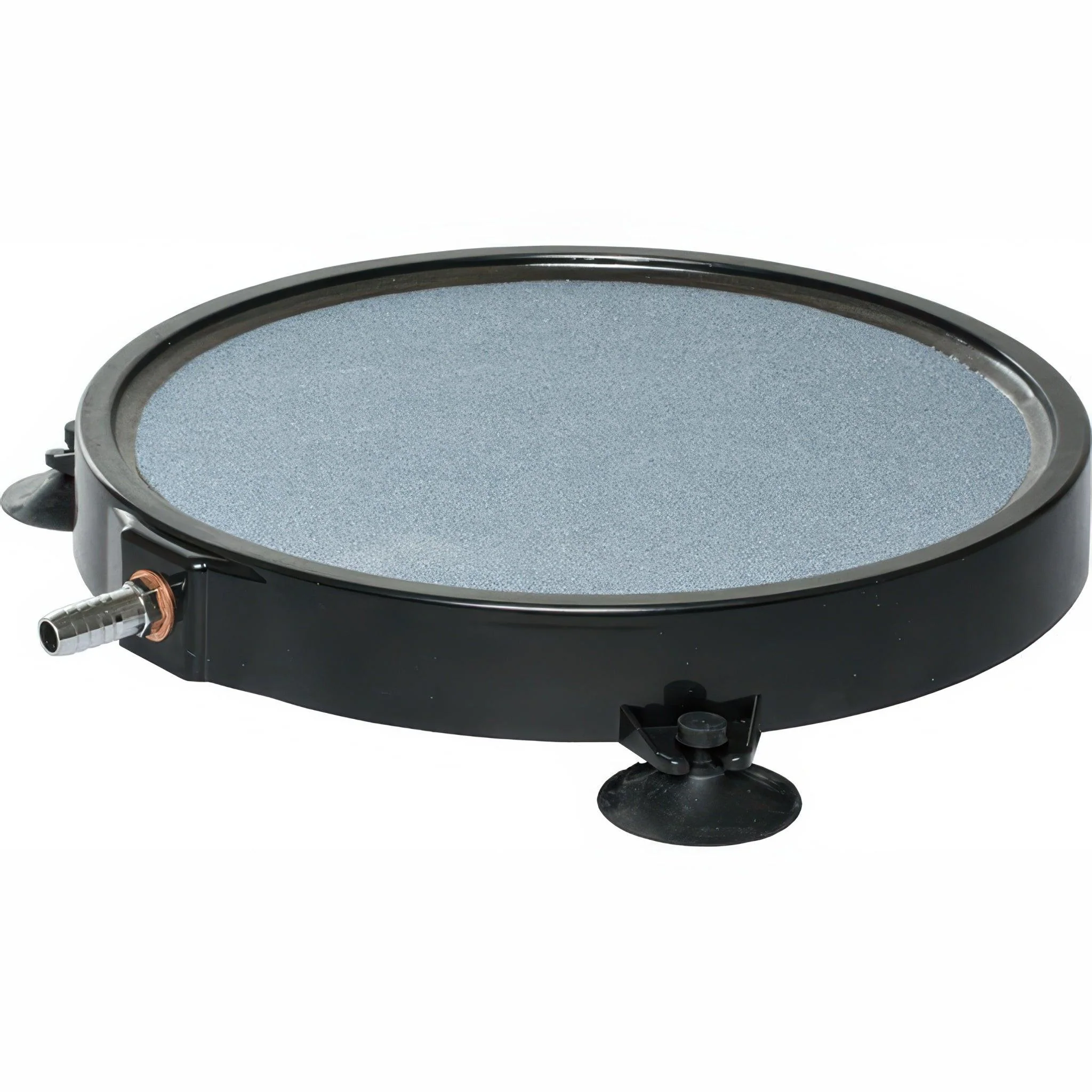

Active Aqua Air Stone, Round

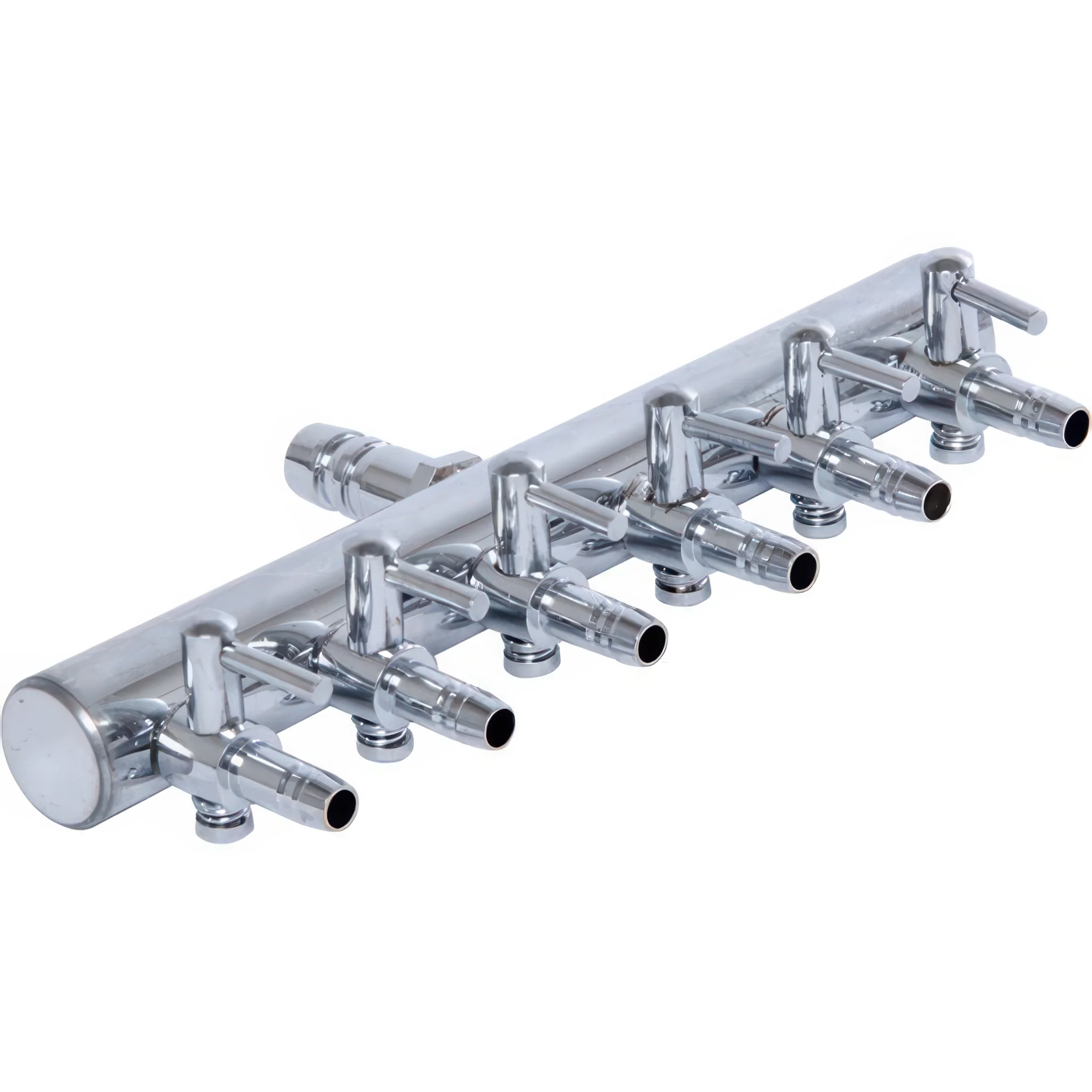

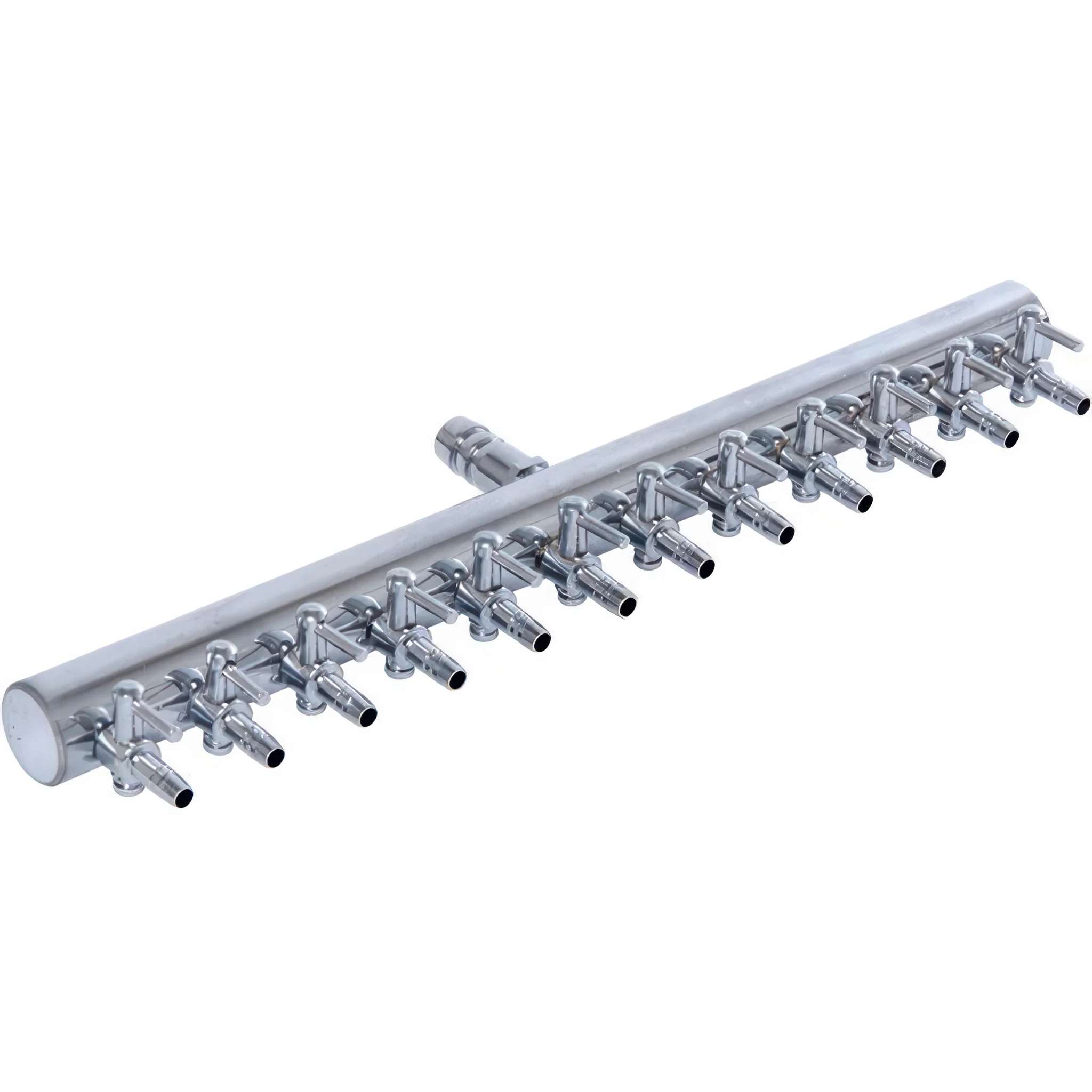

Active Aqua Metal Air Divider

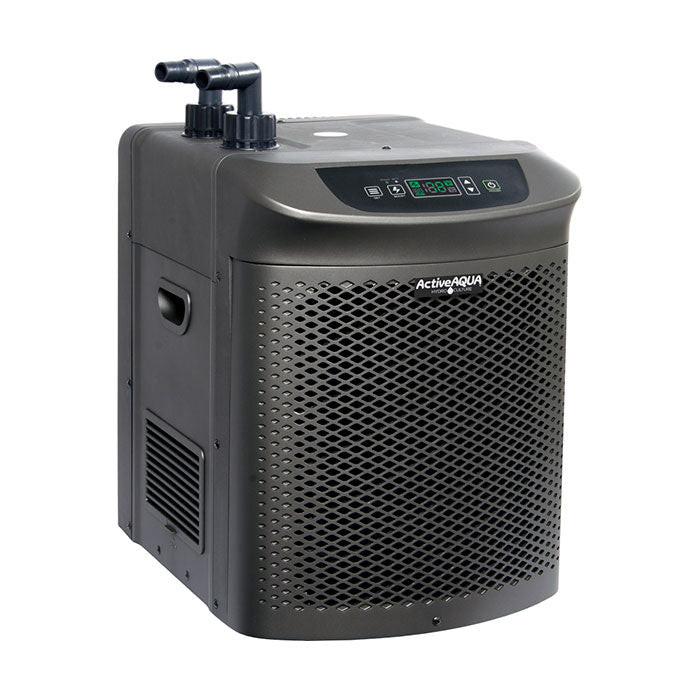

Active Aqua Water Chillers with Power Boost

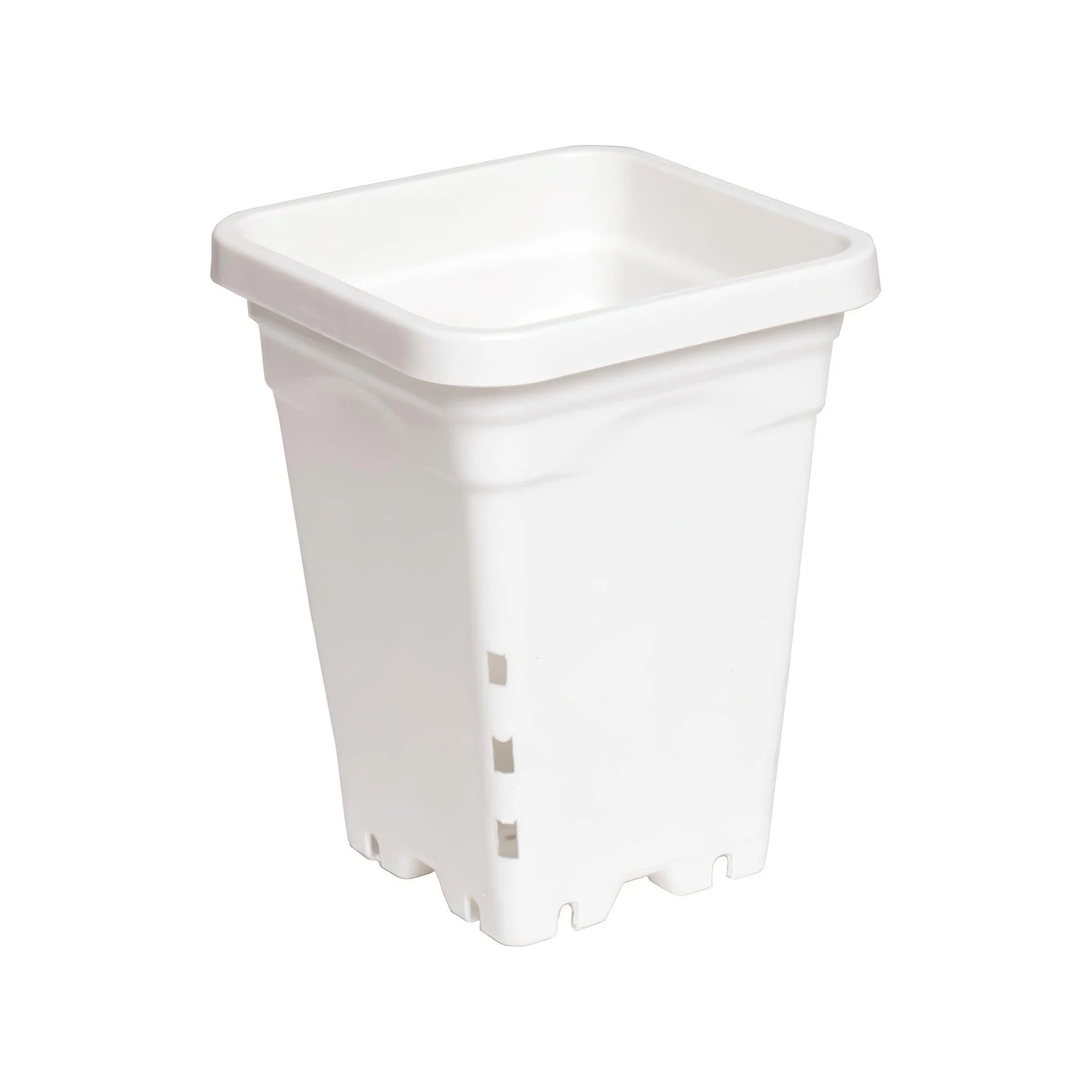

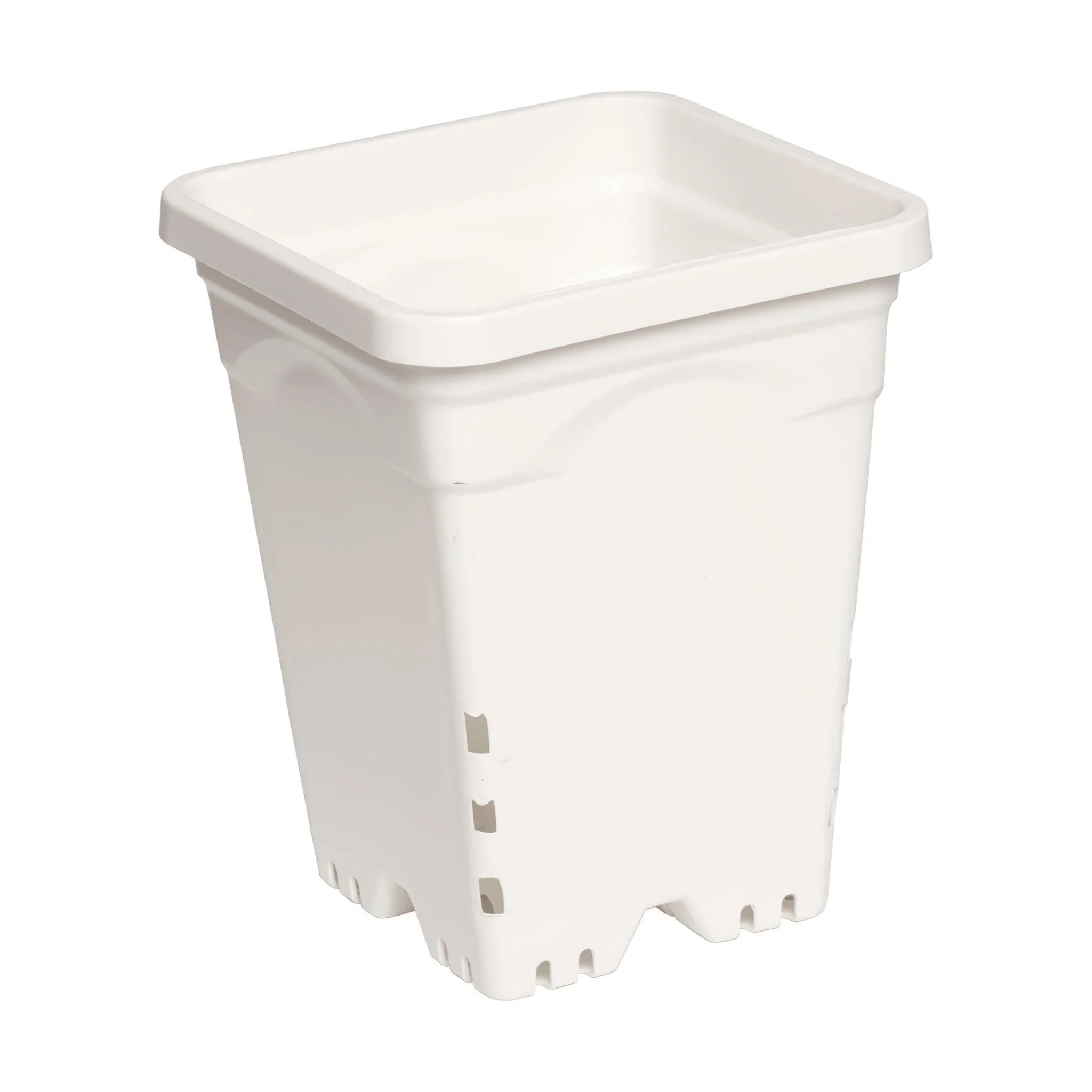

Active Aqua Square White Pots

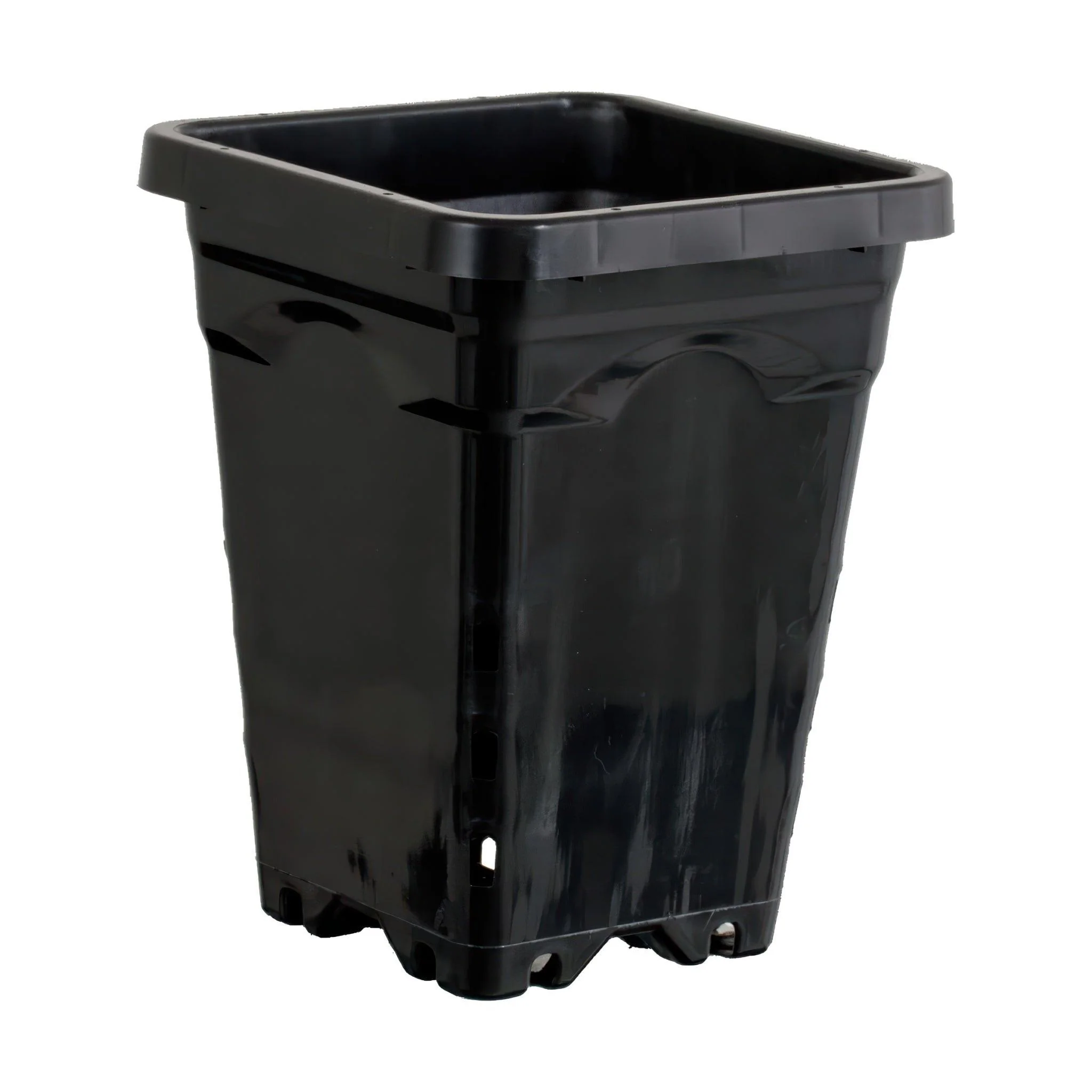

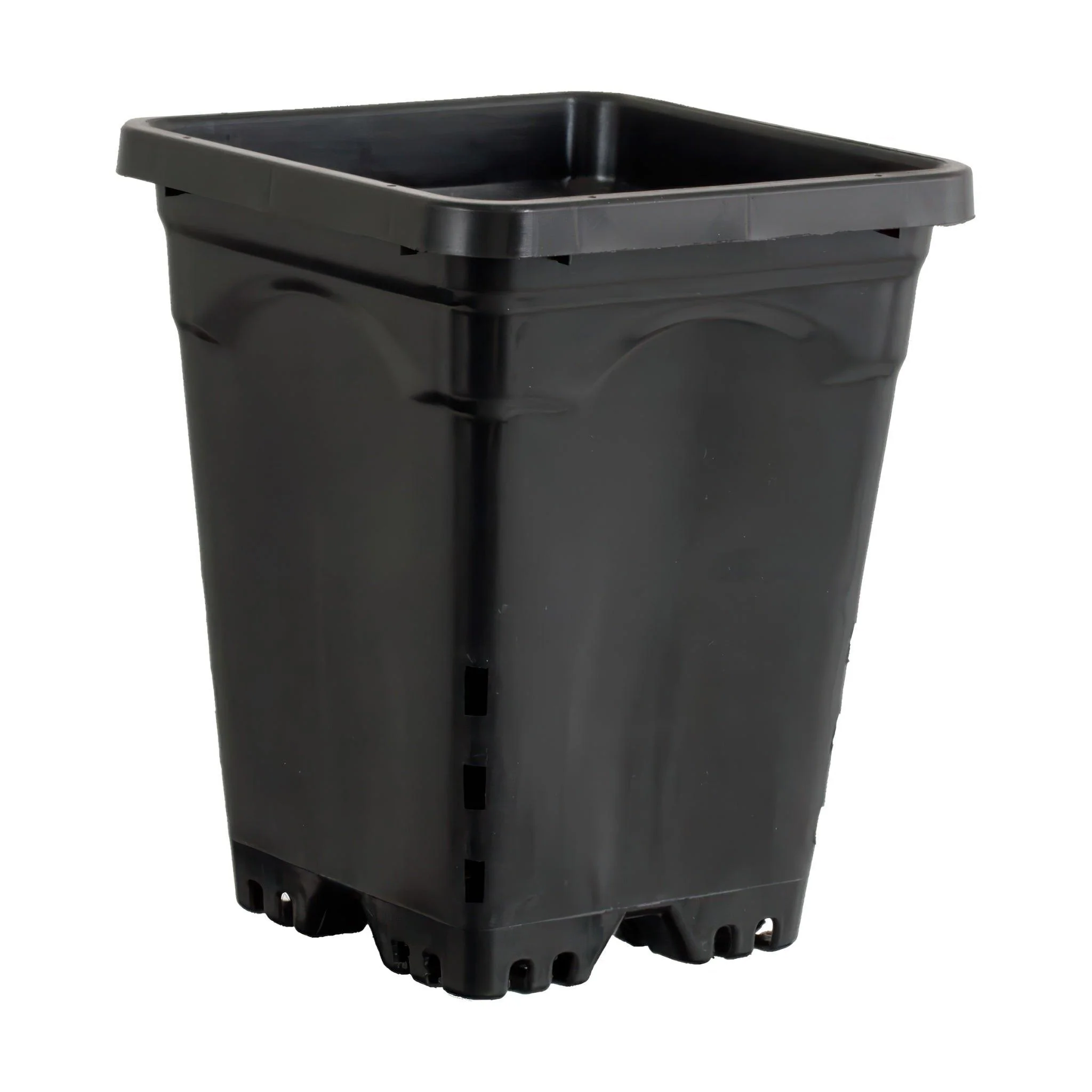

Active Aqua Square Black Pot

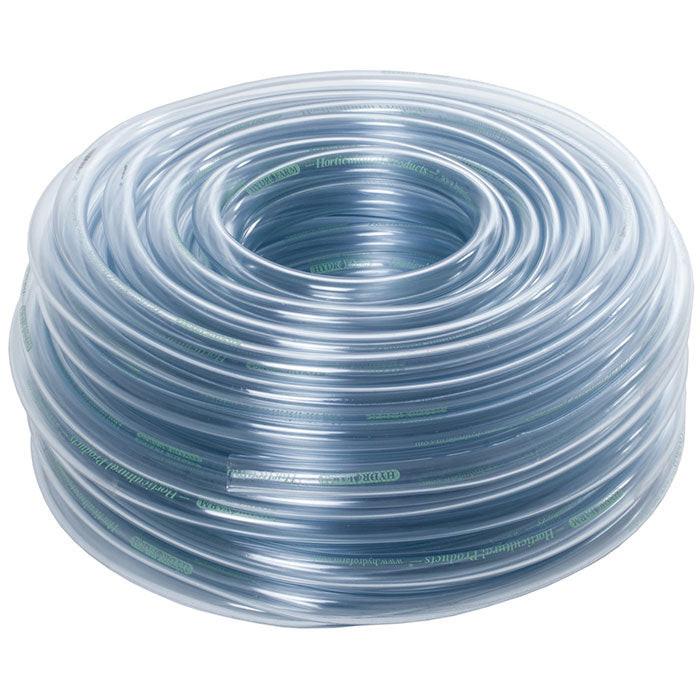

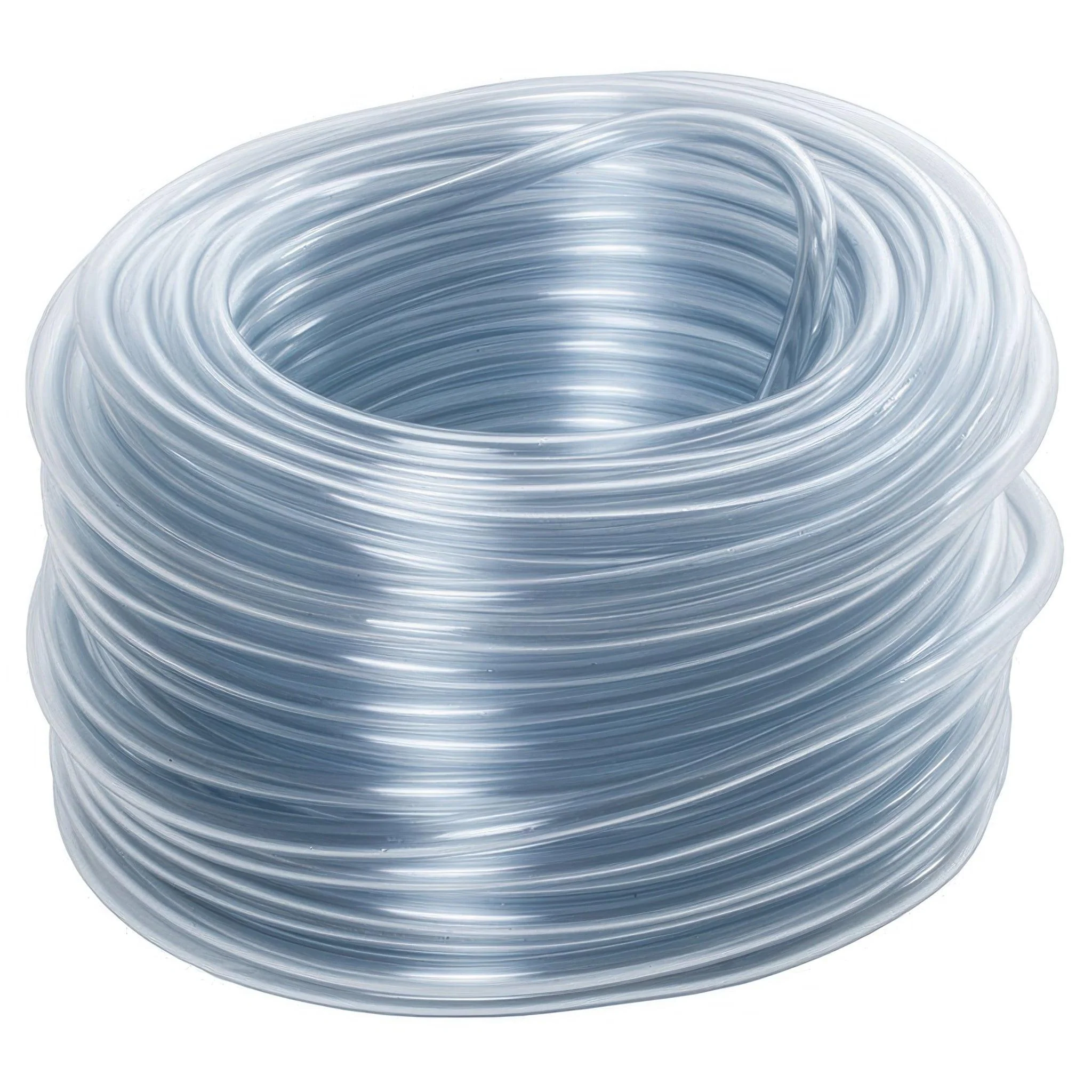

Active Aqua Clear Tubing
